High pin multiplexing flexibility thanks to 300 pin board-to-board connectors
Ideal for multimedia and high performance applications
Ideal for rugged products
CPU
NXP i.MX 8M Plus Solo\Dual\Quad Arm® Cortex®-A53 core
Standard or Lite CPU options
Neural Processing Unit (NPU) option
2.3 TOP/s Neural Network performance
Supports Arm® Cortex®-A53 core frequency up to 1800 MHz
Additional Cortex®-M7 Core up to 800 MHz
DRAM MEMORY
Up to 4GB LPDDR4 memory with 32 bit wide Bus
STORAGE / BOOT MEMORY
From 8 to 64 GB eMMC Flash memory
MULTIMEDIA AND HUMAN INTERFACE
Please note that not all the functions may be available simultaneously, due to pin mux limitation of CPU case. We can check if our SoM is compatible with your application, contact us for more information.
Some functions require transceiver or additional circuitry on expansion board.
Video Processing Unit (VPU) (on standard CPU)
Video Encode 1080p60 AVC / H.264 1080p HEVC / H.265
Video Decode 1080p60 HEVC / H265 Main, Main 10 1080p60 VP9 Profile 0,2 1080p60 VP8 1080p60 AVC / H.264 Baseline, Main, High
GC7000UL Graphics Processing Unit (GPU)
2 shaders
166 million triangles/sec
1.0 giga pixel / sec
16 GFLOPs 32-bit
Supports OpenGL ES 1.1, 2.0, 3.0, OpenCL 1.2, Vulkan
Camera interfaces:
2 x MIPI-CSI Camera Interface (4-Lane) with HDR ISP
Display interfaces:
MIPI-DSI Display Interface (4-Lane)
HDMI 2.0a Tx Display Interface
2 x LVDS Display Interfaces
Audio interfaces:
S/PDIF Audio input and output
Up to 3 x SAI inputs / outputs
I/O PERIPHERALS
Please note that not all the functions may be available simultaneously, due to pin mux limitation of CPU case. We can check if our SoM is compatible with your application, contact us for more information.
Some functions require transceiver or additional circuitry on expansion board.
2 x USB 3.0 OTG
Optional integrated WiFi 802.11a/b/g/n/ac and BT 5.0 Combo Module with Dual Band MIMO
1 x SDIO 3.0 Bus Interface
1 x PCIe 2.0 Bus
4 x UART Interfaces (with optional flow control)
2 x ECSPI Interfaces
3 x I2C Interfaces
4 x PWM outputs
1 x GPT timer
2 x Ethernet 1Gbps with on-board PHY (optional)
2 x On-board CAN bus 2.0B / CAN FD Controller
Integrated Secure Element / Cryptographic co-processor
Integrated temperature sensor
More GPIOs available & SW configurable
SYSTEM
300 pin board-to-board connector
Single +5 VDC ±5% power supply
On board regulators for all integrated functions
Power consumption depends on MPU clock frequency / state.
TEMPERATURE
These temperatures are the ambient operating temperature ranges for the components used into SoM, with exception of iMX8M Plus processor, which is specified on junction operating temperature range, 0-95°C for commercial version and -40-105°C for industrial version. SoM ambient operating temperature depends on the application and on the cooling measures applied.
0 to 70°C for commercial version
-40 to 85°C for industrial version
OPERATING SYSTEMS
Linux (Cortex® – A53 core) + FREERTOS (Cortex® – M7)

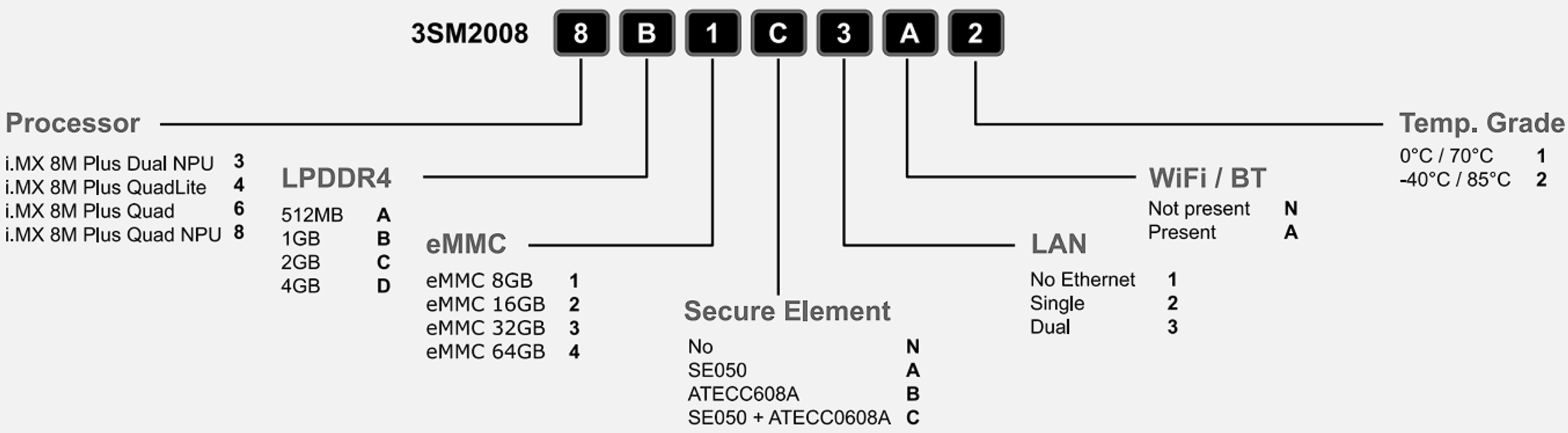

3SM20088B1C3A2 i.MX 8M Plus Quad NPU, 1GB LPDDR4, 8GB eMMC, 2 Gigabit LAN Ports, Single LVDS and MIPI-DSI, SE050, ATECC608A, Industrial Grade
Some code combinations are not allowed and others are available on customizations only, for more information please contact Elettronica GF sales dept.
Caratteristiche

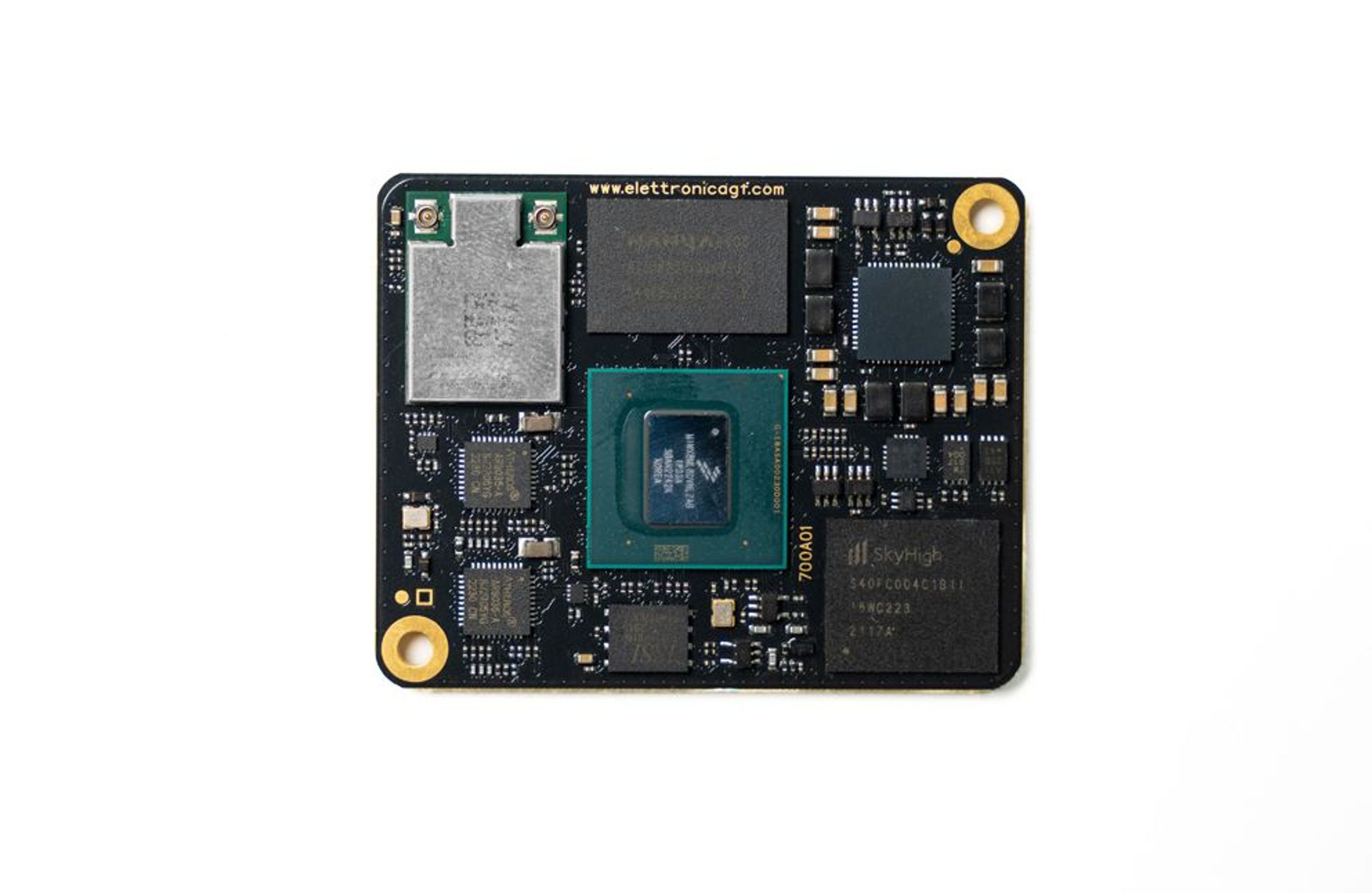

High performance and highly integrated solution
Supports all NXP i.MX 8M Plus processor versions
Small dimensions only 39 x 49 mm
High pin multiplexing flexibility thanks to 300 pin board-to-board connectors
Ideal for multimedia and high performance applications
Ideal for rugged products
Specifiche
CPU
NXP i.MX 8M Plus Solo\Dual\Quad Arm® Cortex®-A53 core
Standard or Lite CPU options
Neural Processing Unit (NPU) option
2.3 TOP/s Neural Network performance
Supports Arm® Cortex®-A53 core frequency up to 1800 MHz
Additional Cortex®-M7 Core up to 800 MHz
DRAM MEMORY
Up to 4GB LPDDR4 memory with 32 bit wide Bus
STORAGE / BOOT MEMORY
From 8 to 64 GB eMMC Flash memory
MULTIMEDIA AND HUMAN INTERFACE
Please note that not all the functions may be available simultaneously, due to pin mux limitation of CPU case. We can check if our SoM is compatible with your application, contact us for more information.
Some functions require transceiver or additional circuitry on expansion board.
Video Processing Unit (VPU) (on standard CPU)
Video Encode 1080p60 AVC / H.264 1080p HEVC / H.265
Video Decode 1080p60 HEVC / H265 Main, Main 10 1080p60 VP9 Profile 0,2 1080p60 VP8 1080p60 AVC / H.264 Baseline, Main, High
GC7000UL Graphics Processing Unit (GPU)
2 shaders
166 million triangles/sec
1.0 giga pixel / sec
16 GFLOPs 32-bit
Supports OpenGL ES 1.1, 2.0, 3.0, OpenCL 1.2, Vulkan
Camera interfaces:
2 x MIPI-CSI Camera Interface (4-Lane) with HDR ISP
Display interfaces:
MIPI-DSI Display Interface (4-Lane)
HDMI 2.0a Tx Display Interface
2 x LVDS Display Interfaces
Audio interfaces:
S/PDIF Audio input and output
Up to 3 x SAI inputs / outputs
I/O PERIPHERALS
Please note that not all the functions may be available simultaneously, due to pin mux limitation of CPU case. We can check if our SoM is compatible with your application, contact us for more information.
Some functions require transceiver or additional circuitry on expansion board.
2 x USB 3.0 OTG
Optional integrated WiFi 802.11a/b/g/n/ac and BT 5.0 Combo Module with Dual Band MIMO
1 x SDIO 3.0 Bus Interface
1 x PCIe 2.0 Bus
4 x UART Interfaces (with optional flow control)
2 x ECSPI Interfaces
3 x I2C Interfaces
4 x PWM outputs
1 x GPT timer
2 x Ethernet 1Gbps with on-board PHY (optional)
2 x On-board CAN bus 2.0B / CAN FD Controller
Integrated Secure Element / Cryptographic co-processor
Integrated temperature sensor
More GPIOs available & SW configurable
SYSTEM
300 pin board-to-board connector
Single +5 VDC ±5% power supply
On board regulators for all integrated functions
Power consumption depends on MPU clock frequency / state.
TEMPERATURE
These temperatures are the ambient operating temperature ranges for the components used into SoM, with exception of iMX8M Plus processor, which is specified on junction operating temperature range, 0-95°C for commercial version and -40-105°C for industrial version. SoM ambient operating temperature depends on the application and on the cooling measures applied.
0 to 70°C for commercial version
-40 to 85°C for industrial version
OPERATING SYSTEMS
Linux (Cortex® – A53 core) + FREERTOS (Cortex® – M7)
SOFTWARE
OS Linux e Yocto
Documentazione
Altre Informazioni
Default Configuration:
3SM20088B1C3A2 i.MX 8M Plus Quad NPU, 1GB LPDDR4, 8GB eMMC, 2 Gigabit LAN Ports, Single LVDS and MIPI-DSI, SE050, ATECC608A, Industrial Grade
Some code combinations are not allowed and others are available on customizations only, for more information please contact Elettronica GF sales dept.
