NXP i.MX 8M Mini

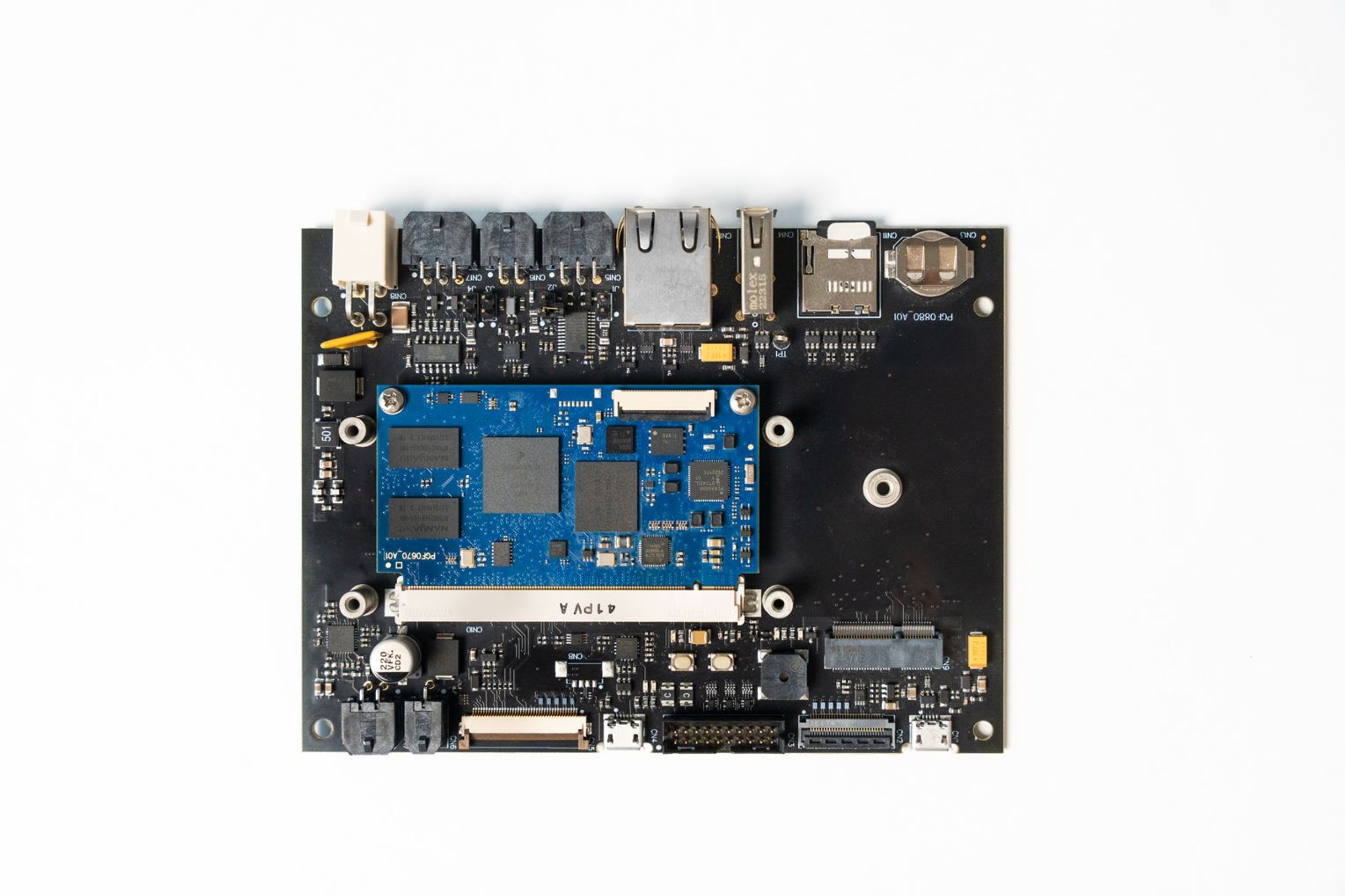

ScillaSBC
- Scalable architectures compatible with all NXP i.MX 8M Mini variants
- Based on Clelia SoM
- Fanless system
- Compact board dimensions only 133 x 100 mm
- Flexible and expandable solution
- Long longevity support
- EGF SW Upgrade platform for updates through USB pendrives or OTA
APPLICATIONS
- Industrial Automation
- Industrial remote controls
- Construction machinery
- Smart Retail
- Intelligent Grid
- Warehouse Systems
- Vending machines
- Robot Industries
CPU
- NXP i.MX 8M Mini Dual/Quad up to 1.8GHz
- 3D GPU (1x shader, OpenGL® ES 2.0) Vivante GCNanoUltra
- 2D GPU Vivante GC320
- Additional Cortex-M4 Core up to 400 MHz
MEMORY
- Up to 4 GB DDR4 32bit
STORAGE / BOOT
- Up to 64 GB eMMC
- μSD slot
DISPLAY AND MULTIMEDIA INTERFACES
Please note that not all the functions may be available simultaneously, due to pin mux limitation of CPU case. We can check if our SoM is compatible with your application, contact us for more information.
Some functions require transceiver or additional circuitry on expansion board.
- MIPI-DSI Display interface
- MIPI-CSI Camera Interface (4-lane)
- Integrated Audio
SYSTEM
- Single +12-24 VDC ±10% power supply
PERIPHERALS
Please note that not all the functions may be available simultaneously, due to pin mux limitation of the CPU. We can check if our board suits your application, contact us for more information.
- 1 x USB 2.0 Host Connectors
- 1 x micro USB 2.0 Host Connector
- 1 x Ethernet 1Gbps
- 1 x CAN BUS Interface with integrated Transceiver
- 1 x SW selectable RS-232 / RS-485 / RS-422 port
- 1 x RS-485 Full Duplex port
- 1 x M.2 key E Connector for Wi-Fi / BT Modules
- Temperature sensor
- Buzzer
- RTC
- microSD slot
- Expansion Connector
TEMPERATURE
These temperatures are the ambient operating temperature ranges for the components used into the board, with exception of i.MX8M series CPU which is specified on junction operating temperature range. Panel PC ambient operating temperature depends on the application and on the cooling measures applied.
- Industrial: From -40 °C to +85 °C
- Commercial: From 0°C to +70 °C
OPERATING SYSTEMS
- Linux Embedded
SOFTWARE
OS Linux e Yocto
HMI DEVELOP SDK
QT support is only under requests from Costumer, all responsibility and license costs are in charge on costumer.
- HTML5 supported
- QT
