NXP i.MX 93

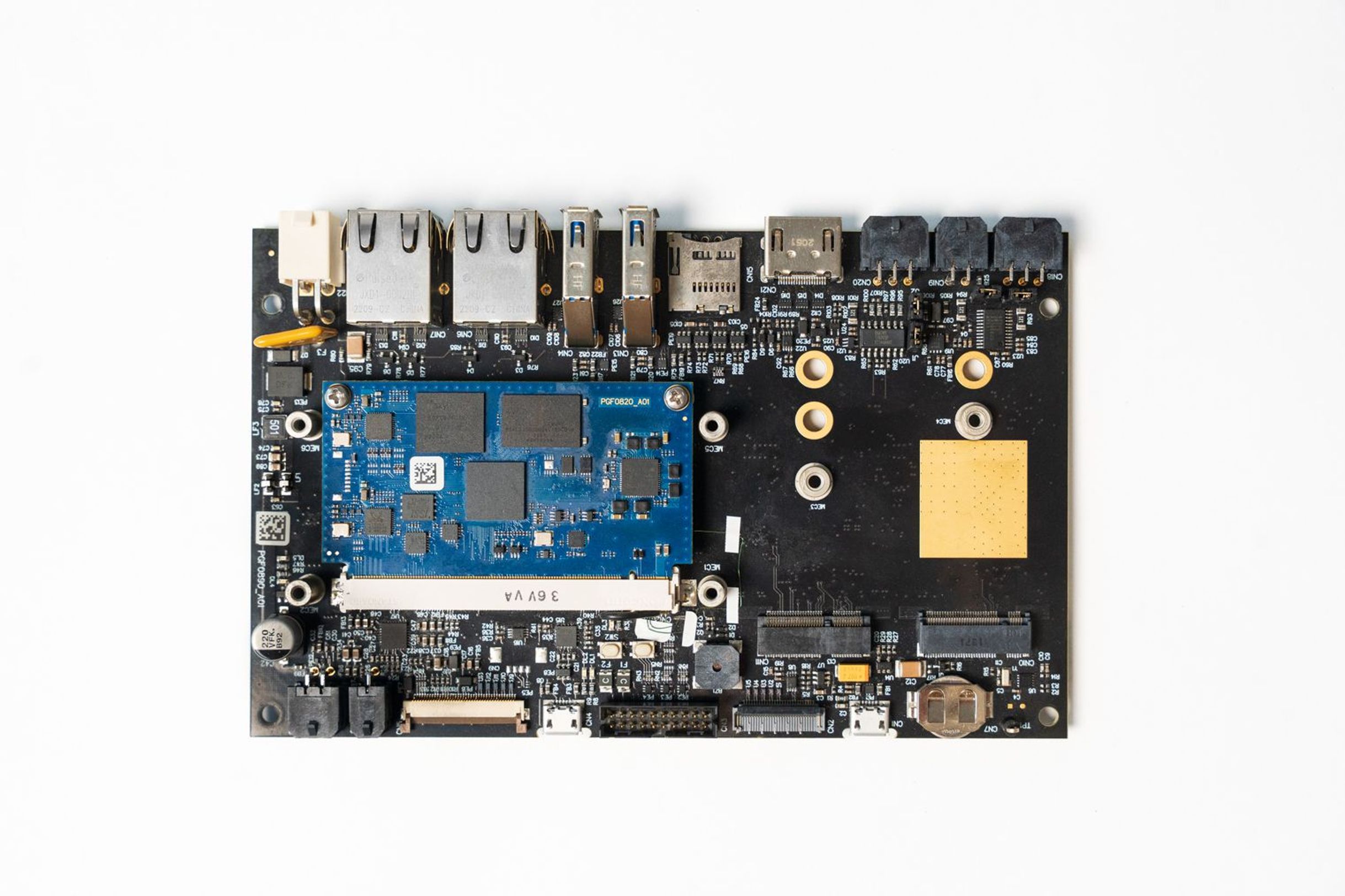

RinaSBC
- Scalable architectures compatible with NXP i.MX93 CPU
- Based on Merit SoM
- High performance, ready for IA-driven future
- Security subsystem with cryptographic accelerators
- Compact board dimensions only 160 x 100 mm
- Flexible and expandable solution
- Long longevity support
- EGF SW Upgrade platform for updates through USB pendrives or OTA
APPLICAZIONI
- Industrial Automation
- Industrial remote controls
- Construction machinery
- Smart Retail
- Intelligent Grid
- Warehouse Systems
- Robot Industries
CPU
- NXP i.MX 93 Solo/ Dual Arm®Cortex®-A55 core up to 1.7 GHz
- Additional Cortex-M33 Core up to 250 MHz
MEMORIA
- Up to 4 GB LPDDR4
MULTIMEDIA
- HDMI Display interface
- MIPI-DSI Display interface
- MIPI-CSI Camera Interface (4-lane) with HDR ISP
- Integrated Audio
SOFTWARE
- OS Linux e Yocto
TEMPERATURA
- From 0°C to 70°C for Commercial version
- From -40°C to 85°C for Industrial version
SPECIFICHE MECCANICHE
- Size 160x100 mm
I/O
- 2x USB 3.0 Host Connectors
- 1x micro USB 2.0 Host Connector
- 1x HDMI Display Connector
- 1x Ethernet 1Gbps
- 1x CAN BUS Interface with integrated Transceiver
- 1x SW selectable RS-232/ RS-485/ RS-422 port
- 1x RS-485 Full Duplex port
- 1x M.2 key E Connector for Wi-Fi / BT Modules
- 1x M.2 key B Connector for LTE Modules
- 1x nano SIM connector
- Buzzer
- Temperature sensor
- RTC
- microSD slot
- Expansion Connector
Caratteristiche
- Scalable architectures compatible with NXP i.MX93 CPU
- Based on Merit SoM
- High performance, ready for IA-driven future
- Security subsystem with cryptographic accelerators
- Compact board dimensions only 160 x 100 mm
- Flexible and expandable solution
- Long longevity support
- EGF SW Upgrade platform for updates through USB pendrives or OTA
APPLICAZIONI
- Industrial Automation
- Industrial remote controls
- Construction machinery
- Smart Retail
- Intelligent Grid
- Warehouse Systems
- Robot Industries
Specifiche
CPU
- NXP i.MX 93 Solo/ Dual Arm®Cortex®-A55 core up to 1.7 GHz
- Additional Cortex-M33 Core up to 250 MHz
MEMORIA
- Up to 4 GB LPDDR4
MULTIMEDIA
- HDMI Display interface
- MIPI-DSI Display interface
- MIPI-CSI Camera Interface (4-lane) with HDR ISP
- Integrated Audio
SOFTWARE
- OS Linux e Yocto
TEMPERATURA
- From 0°C to 70°C for Commercial version
- From -40°C to 85°C for Industrial version
SPECIFICHE MECCANICHE
- Size 160x100 mm
I/O
- 2x USB 3.0 Host Connectors
- 1x micro USB 2.0 Host Connector
- 1x HDMI Display Connector
- 1x Ethernet 1Gbps
- 1x CAN BUS Interface with integrated Transceiver
- 1x SW selectable RS-232/ RS-485/ RS-422 port
- 1x RS-485 Full Duplex port
- 1x M.2 key E Connector for Wi-Fi / BT Modules
- 1x M.2 key B Connector for LTE Modules
- 1x nano SIM connector
- Buzzer
- Temperature sensor
- RTC
- microSD slot
- Expansion Connector
