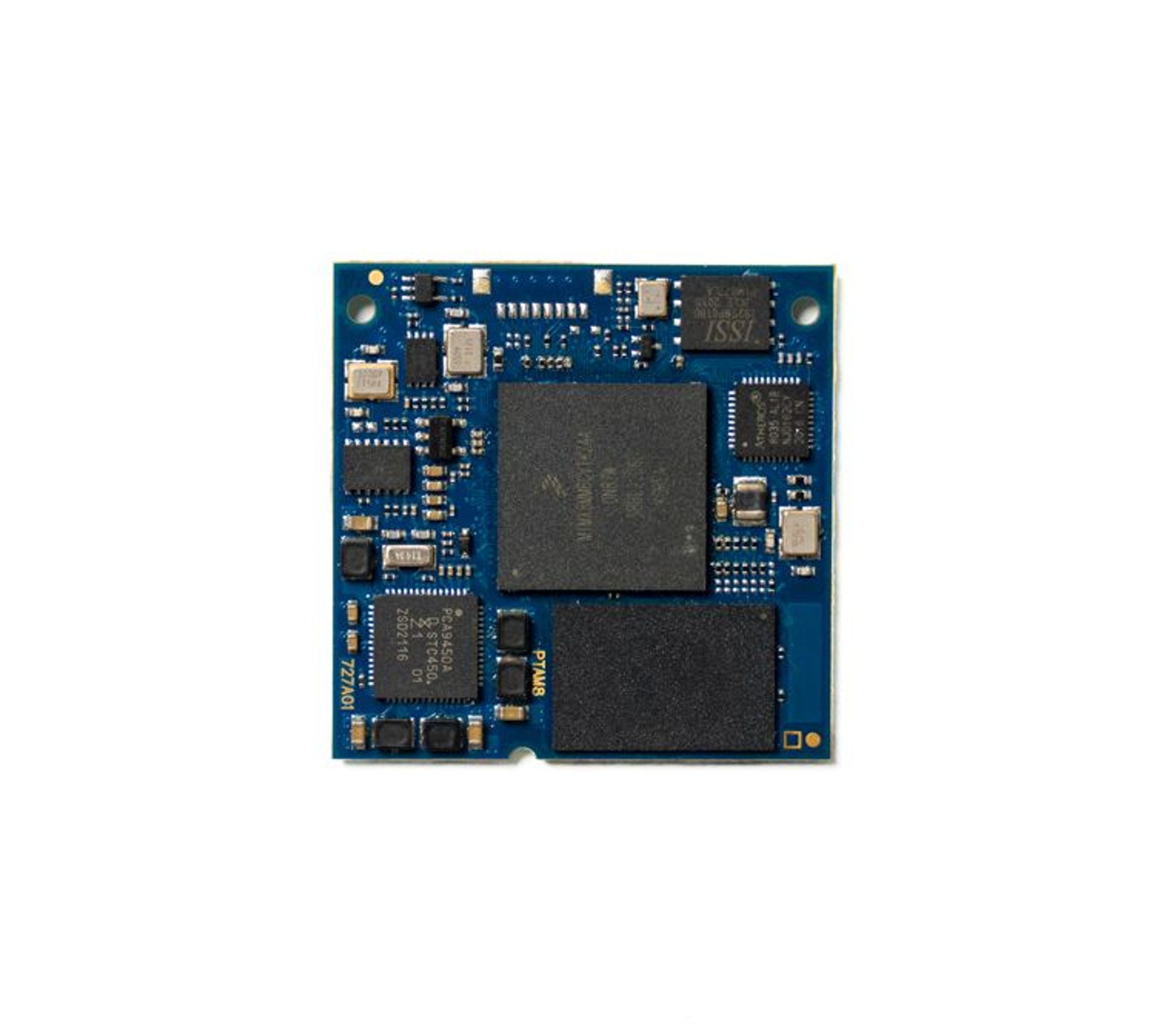

NXP i.MX 8M Mini
NenaSoM
- High performance / Low cost solution
- Scalable with all NXP i.MX 8M Mini processors
- Small dimensions only 34x34mm
- 100 pin Board to Board connector
- General purpose applications
CPU
- NXP i.MX 8M Mini Solo/ Dual/Quad Arm®Cortex®-A53 core
- Standard or Lite CPU options
- Additional Cortex-M4F Core up to 400 MHz
MEMORIA
- Up to 4 Gbyte LPDDR4
- Up to 256Gbyte eMMC
MULTIMEDIA
- Video Processing Unit (VPU) (on standard CPU)
- 1080op60 H.264, VP8 encoder
- 1080op60 H.265, VP9 encoder
- 1080op60 H.264, VP8 encoder
- Graphics Processing Unit (GPU)
- GC Nano Ultra 3D GPU with OpenGL® ES 2.0
- GC320 2D GPU
- MIPI-CSI Camera Interface 4 lane
- MIPI-DSI Display Interface 4 lane
SOFTWARE
- OS Linux e Yocto
- Graphic SDK, QT (under responsibility and request from costumer) BSP supported
TEMPERATURA
- From 0°C to 70°C for commercial version
- From -40°C to 85°C for commercial version
SPECIFICHE MECCANICHE
- Size 37mm x 37mm
I/O
- 3x UARTS interface with flow control
- 3x I2C general purpose interface
- 1x ESCPI interface
- 1x SDIO 3.0 Bus Interface
- 4x PWM outputs
- 1x USB 2.0 OTG port
- 1xUSB 2.0 Host port
- 1x Ethernet 1Gbps with on board PHY (optional)
- 1x CAN bus FD controller (optional)
- 1x JTAG interface
Caratteristiche
- High performance / Low cost solution
- Scalable with all NXP i.MX 8M Mini processors
- Small dimensions only 34x34mm
- 100 pin Board to Board connector
- General purpose applications
Specifiche
CPU
- NXP i.MX 8M Mini Solo/ Dual/Quad Arm®Cortex®-A53 core
- Standard or Lite CPU options
- Additional Cortex-M4F Core up to 400 MHz
MEMORIA
- Up to 4 Gbyte LPDDR4
- Up to 256Gbyte eMMC
MULTIMEDIA
- Video Processing Unit (VPU) (on standard CPU)
- 1080op60 H.264, VP8 encoder
- 1080op60 H.265, VP9 encoder
- 1080op60 H.264, VP8 encoder
- Graphics Processing Unit (GPU)
- GC Nano Ultra 3D GPU with OpenGL® ES 2.0
- GC320 2D GPU
- MIPI-CSI Camera Interface 4 lane
- MIPI-DSI Display Interface 4 lane
SOFTWARE
- OS Linux e Yocto
- Graphic SDK, QT (under responsibility and request from costumer) BSP supported
TEMPERATURA
- From 0°C to 70°C for commercial version
- From -40°C to 85°C for commercial version
SPECIFICHE MECCANICHE
- Size 37mm x 37mm
I/O
- 3x UARTS interface with flow control
- 3x I2C general purpose interface
- 1x ESCPI interface
- 1x SDIO 3.0 Bus Interface
- 4x PWM outputs
- 1x USB 2.0 OTG port
- 1xUSB 2.0 Host port
- 1x Ethernet 1Gbps with on board PHY (optional)
- 1x CAN bus FD controller (optional)
- 1x JTAG interface
