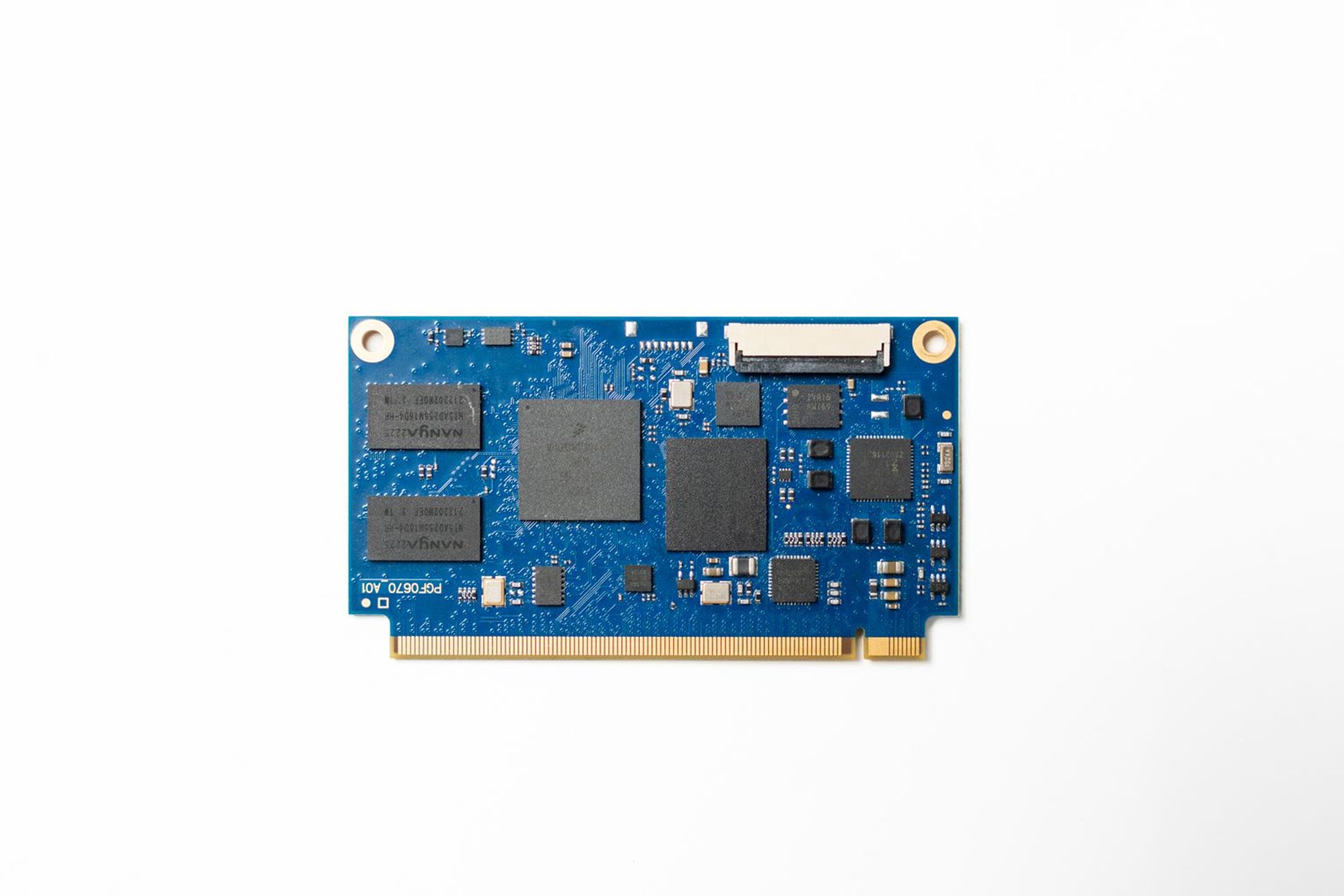

Compatible with 3SM1008N series SoM based on NXP i.MX 8M Nano
Small dimensions only 40x71mm
230 pin Card Edge connector
General purpose applications
Functional and Hardware compatible with 3SM1004 series SoM based on NXP i.MX6
There are some differences related to alternate functions or peripherals not available on both i.MX6 and i.MX 8M Mini processors. Check 3SM1004 and 3SM1008M user’s manual for more detail on available peripherals and alternate functions.
CPU
NXP i.MX 8M Mini Solo\Dual\Quad Arm® Cortex®-A53 core
Standard or Lite CPU options
Supports Arm® Cortex®-A53 core frequency up to 1800 MHz
Additional Cortex-M4F Core up to 400 MHz
DRAM MEMORY
From 1 to 4GB DDR4 memory with 32 bit wide Bus
STORAGE / BOOT MEMORY
From 4 to 64 GB eMMC Flash memory
MULTIMEDIA AND HUMAN INTERFACE
Please note that not all the functions may be available simultaneously, due to pin mux limitation of CPU case. For more information, refer to NXP user’s manual.
Some functions require transceiver or additional circuitry on expansion board.
Video Processing Unit (VPU) (on standard CPU) 1080p60 H.264, VP8 encoder 1080p60 H265, VP9 decoder 1080p60 H264, VP8 decoder
Graphics Processing Unit (GPU) GCNanoUltra 3D GPU with OpenGL®ES 2.0 GC320 2D GPU
MIPI-CSI Camera Interface (4-Lane)
MIPI-DSI Display Interface (4-Lane) (optional)
On-board single \ dual LVDS Display Interface (optional)
Digital microphone PDM input
Up to 5 x SAI inputs / outputs
S/PDIF Audio input and output
I/O PERIPHERALS
Please note that not all the functions may be available simultaneously, due to pin mux limitation of CPU case. For more information, refer to NXP user’s manual.
Some functions require transceiver or additional circuitry on expansion board.
2 x USB 2.0 OTG
2 x SDIO 3.0 Bus Interfaces
1 x PCIe 2.0 Bus
4 x UART Interfaces with flow control
3 x ECSPI Interfaces
3 x I2C Interfaces
4 x PWM outputs
1 x GPT timer
1 x Ethernet 1Gbps with on-board PHY (optional)
1 x On-board CAN bus FD Controller (optional)
1 x 16 bit GPIO Expander (optional)
More GPIOs available & SW configurable
SYSTEM
230 pin edge connector
Single +3.3 VDC ±5% power supply
On board regulators for all integrated functions
Power consumption depends on MPU clock frequency / state.
TEMPERATURE
These temperatures are the ambient operating temperature ranges for the components used into SoM, with exception of iMX8M Mini processor, which is specified on junction operating temperature range, 0-95°C for commercial version and -40-105°C for industrial version. SoM ambient operating temperature depends on the application and on the cooling measures applied
0 to 70°C for commercial version
-40 to 85°C for industrial version
OPERATING SYSTEMS
Linux (Cortex® – A53 core) + FREERTOS (Cortex® – M4)

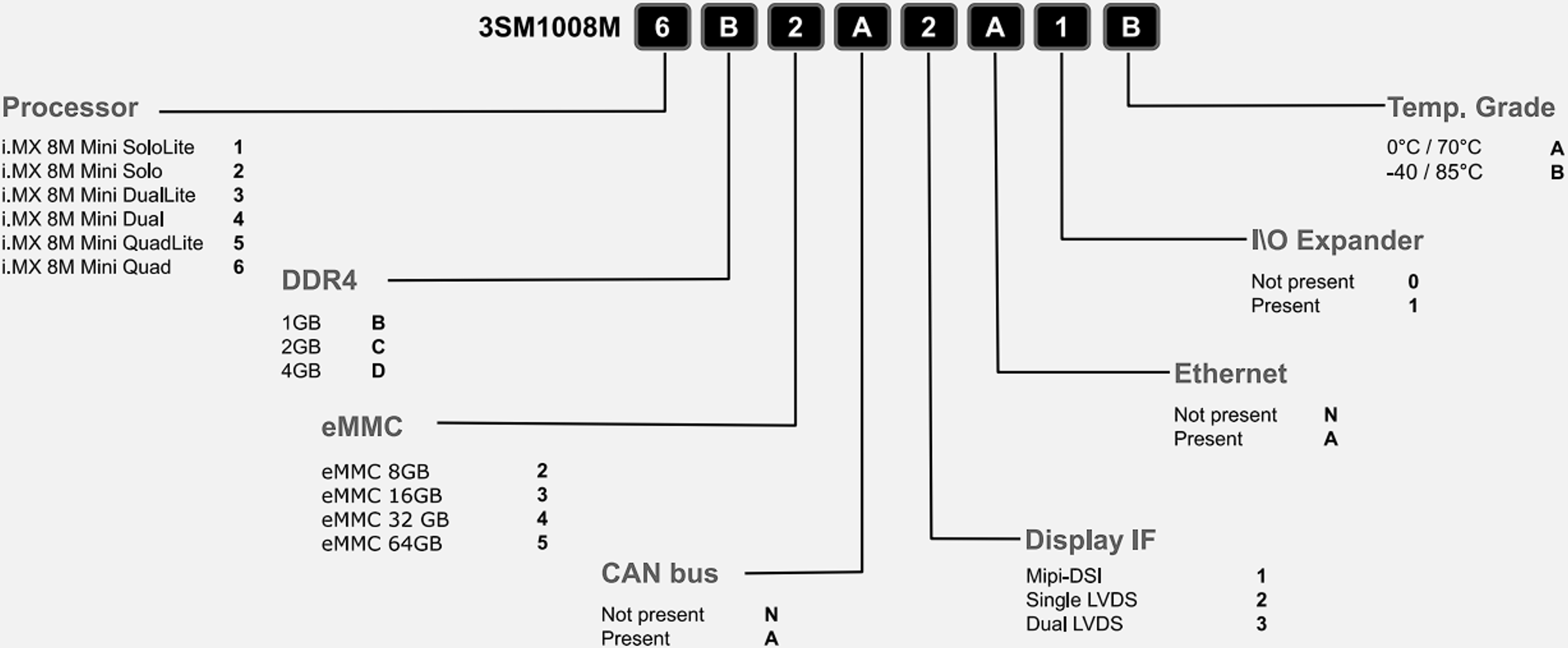

Some code combinations are not allowed and others are available on customizations only, for more information please contact Elettronica GF sales dept.
Caratteristiche
High performance / Low cost solution
Scalable with all NXP i.MX 8M Mini processors
Compatible with 3SM1008N series SoM based on NXP i.MX 8M Nano
Small dimensions only 40x71mm
230 pin Card Edge connector
General purpose applications
Functional and Hardware compatible with 3SM1004 series SoM based on NXP i.MX6
There are some differences related to alternate functions or peripherals not available on both i.MX6 and i.MX 8M Mini processors. Check 3SM1004 and 3SM1008M user’s manual for more detail on available peripherals and alternate functions.
Specifiche
CPU
NXP i.MX 8M Mini Solo\Dual\Quad Arm® Cortex®-A53 core
Standard or Lite CPU options
Supports Arm® Cortex®-A53 core frequency up to 1800 MHz
Additional Cortex-M4F Core up to 400 MHz
DRAM MEMORY
From 1 to 4GB DDR4 memory with 32 bit wide Bus
STORAGE / BOOT MEMORY
From 4 to 64 GB eMMC Flash memory
MULTIMEDIA AND HUMAN INTERFACE
Please note that not all the functions may be available simultaneously, due to pin mux limitation of CPU case. For more information, refer to NXP user’s manual.
Some functions require transceiver or additional circuitry on expansion board.
Video Processing Unit (VPU) (on standard CPU) 1080p60 H.264, VP8 encoder 1080p60 H265, VP9 decoder 1080p60 H264, VP8 decoder
Graphics Processing Unit (GPU) GCNanoUltra 3D GPU with OpenGL®ES 2.0 GC320 2D GPU
MIPI-CSI Camera Interface (4-Lane)
MIPI-DSI Display Interface (4-Lane) (optional)
On-board single \ dual LVDS Display Interface (optional)
Digital microphone PDM input
Up to 5 x SAI inputs / outputs
S/PDIF Audio input and output
I/O PERIPHERALS
Please note that not all the functions may be available simultaneously, due to pin mux limitation of CPU case. For more information, refer to NXP user’s manual.
Some functions require transceiver or additional circuitry on expansion board.
2 x USB 2.0 OTG
2 x SDIO 3.0 Bus Interfaces
1 x PCIe 2.0 Bus
4 x UART Interfaces with flow control
3 x ECSPI Interfaces
3 x I2C Interfaces
4 x PWM outputs
1 x GPT timer
1 x Ethernet 1Gbps with on-board PHY (optional)
1 x On-board CAN bus FD Controller (optional)
1 x 16 bit GPIO Expander (optional)
More GPIOs available & SW configurable
SYSTEM
230 pin edge connector
Single +3.3 VDC ±5% power supply
On board regulators for all integrated functions
Power consumption depends on MPU clock frequency / state.
TEMPERATURE
These temperatures are the ambient operating temperature ranges for the components used into SoM, with exception of iMX8M Mini processor, which is specified on junction operating temperature range, 0-95°C for commercial version and -40-105°C for industrial version. SoM ambient operating temperature depends on the application and on the cooling measures applied
0 to 70°C for commercial version
-40 to 85°C for industrial version
OPERATING SYSTEMS
Linux (Cortex® – A53 core) + FREERTOS (Cortex® – M4)
SOFTWARE
OS Linux e Yocto
Documentazione
Altre Informazioni
Some code combinations are not allowed and others are available on customizations only, for more information please contact Elettronica GF sales dept.
