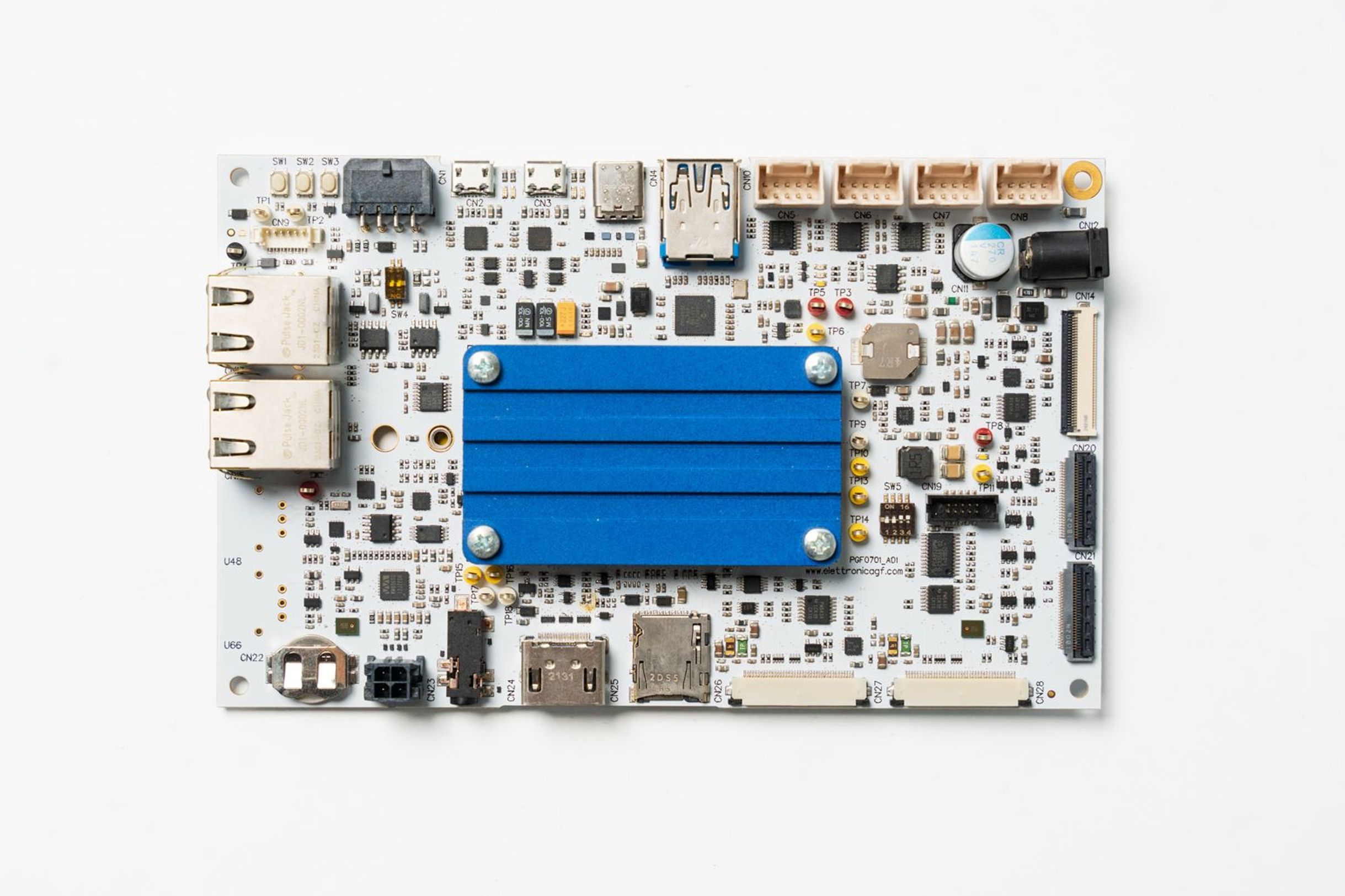

NXP i.MX 8M Plus
BiancaSBC
- Ready to use solution: start developing your product now
- Can be integrated in your product as-is or used as a starting point for a customization
- High performance, ready for IA-driven future
- Robust solution, ideal for rugged applications
- Powerful graphic performance, ideal to create next-generation HMIs
- Ideal for multimedia applications
- Supports all NXP i.MX8M Plus processor variants
- Compact dimensions only 160 x 100 mm
- Support Zaira SoM
- Flexible and expandable solution
- EGF SW Upgrade platform for updates through USB pendrives or OTA
CPU
- NXP i.MX 8M Plus Dual / QuadLite / Quad Arm® Cortex®-A53 CPU
- Dual / Quad core versions
- CPU frequency up to 1800 MHz
- Additional Cortex-M7 Core up to 800 MHz
- Neural Processing Unit (NPU) depending on SoM configuration
MULTIMEDIA AND HUMAN INTERFACE
Please note that not all the functions may be available simultaneously, due to pin mux limitation of CPU case. For more information, refer to NXP user’s manual.
- 4 display connectors available:
- MIPI-DSI Display (4-Lane)
- HDMI
- 2 x LVDS
- 2 camera connectors available
- MIPI-CSI Camera (4-Lane)
- Integrated Audio Codec
- Headphone Jack (with mic)
- Speaker output (8 ohm – 1W)
- Optical SPDIF output (optional)
- 2 x PDM digital microphones
- 7”, 10.1”, 15.6” and other custom size displays available on request
SYSTEM
- Single +12-24 VDC ±10% power supply
- On board regulators for all integrated functions
- Power consumption depends on application
STORAGE / BOOT MEMORY
- Up to 64 GB eMMC Flash memory
DRAM MEMORY
- Up to 4GB LPDDR4 memory with 32 bit wide Bus
I/O PERIPHERALS
Please note that not all the functions may be available simultaneously, due to pin mux limitation of CPU case. For more information, refer to NXP user’s manual.
- 1 x USB 3.1 Host Connector
- 1 x USB Type-C OTG Connector with DRP
- M.2 Key-B Connector for Modem or SSD expansion
- 2 x CAN BUS Interfaces with integrated High Speed Transceiver and CAN FD support up to 5 Mbit/s
- 2 x LAN 10/100/1000 RJ45 connectors
- 4 x RS-232 UART Connectors
- 2 x USB Debug Connectors with integrated FTDI Chip for Cortex-A53 and Cortex-M7 Debug
TEMPERATURE
These temperatures are the ambient operating temperature ranges for the components used into SoM, with exception of iMX8M Plus processor, which is specified on junction operating temperature range, 0-95°C for commercial version and -40-105°C for industrial version. SoM ambient operating temperature depends on the application and on the cooling measures applied.
- 0 to 70° for commercial version
- -40 to 85°C for industrial version
OPERATING SYSTEMS
- Linux (Cortex® – A53 core) + FREERTOS (Cortex® – M7)
SOFTWARE
OS Linux e Yocto
Brochure
Caratteristiche
- Ready to use solution: start developing your product now
- Can be integrated in your product as-is or used as a starting point for a customization
- High performance, ready for IA-driven future
- Robust solution, ideal for rugged applications
- Powerful graphic performance, ideal to create next-generation HMIs
- Ideal for multimedia applications
- Supports all NXP i.MX8M Plus processor variants
- Compact dimensions only 160 x 100 mm
- Support Zaira SoM
- Flexible and expandable solution
- EGF SW Upgrade platform for updates through USB pendrives or OTA
Specifiche
CPU
- NXP i.MX 8M Plus Dual / QuadLite / Quad Arm® Cortex®-A53 CPU
- Dual / Quad core versions
- CPU frequency up to 1800 MHz
- Additional Cortex-M7 Core up to 800 MHz
- Neural Processing Unit (NPU) depending on SoM configuration
MULTIMEDIA AND HUMAN INTERFACE
Please note that not all the functions may be available simultaneously, due to pin mux limitation of CPU case. For more information, refer to NXP user’s manual.
- 4 display connectors available:
- MIPI-DSI Display (4-Lane)
- HDMI
- 2 x LVDS
- 2 camera connectors available
- MIPI-CSI Camera (4-Lane)
- Integrated Audio Codec
- Headphone Jack (with mic)
- Speaker output (8 ohm – 1W)
- Optical SPDIF output (optional)
- 2 x PDM digital microphones
- 7”, 10.1”, 15.6” and other custom size displays available on request
SYSTEM
- Single +12-24 VDC ±10% power supply
- On board regulators for all integrated functions
- Power consumption depends on application
STORAGE / BOOT MEMORY
- Up to 64 GB eMMC Flash memory
DRAM MEMORY
- Up to 4GB LPDDR4 memory with 32 bit wide Bus
I/O PERIPHERALS
Please note that not all the functions may be available simultaneously, due to pin mux limitation of CPU case. For more information, refer to NXP user’s manual.
- 1 x USB 3.1 Host Connector
- 1 x USB Type-C OTG Connector with DRP
- M.2 Key-B Connector for Modem or SSD expansion
- 2 x CAN BUS Interfaces with integrated High Speed Transceiver and CAN FD support up to 5 Mbit/s
- 2 x LAN 10/100/1000 RJ45 connectors
- 4 x RS-232 UART Connectors
- 2 x USB Debug Connectors with integrated FTDI Chip for Cortex-A53 and Cortex-M7 Debug
TEMPERATURE
These temperatures are the ambient operating temperature ranges for the components used into SoM, with exception of iMX8M Plus processor, which is specified on junction operating temperature range, 0-95°C for commercial version and -40-105°C for industrial version. SoM ambient operating temperature depends on the application and on the cooling measures applied.
- 0 to 70° for commercial version
- -40 to 85°C for industrial version
OPERATING SYSTEMS
- Linux (Cortex® – A53 core) + FREERTOS (Cortex® – M7)
SOFTWARE
OS Linux e Yocto
