NXP i.MX 8M Plus

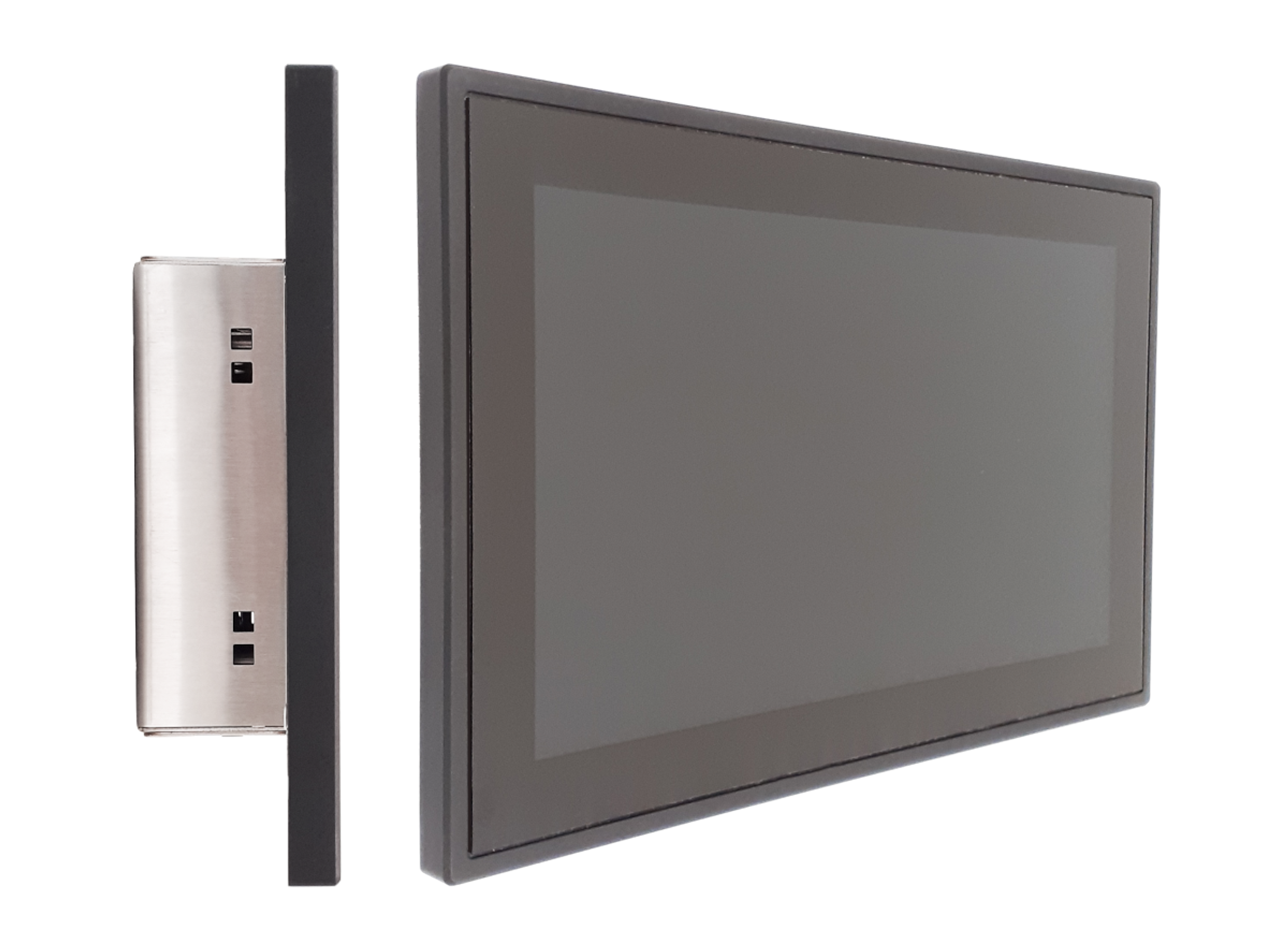

AgataHMI
- Scalable architectures with NXP i.MX8M PLUS
- Available with different display 7”, 10.1”, 15.6”, 21.5” with CTP
- NPU for AI applications available
- Security subsystem with cryptographic accelerators
- Customizable Panel PC
- Fanless system
- Boxed (CPT) and open frame version (RTP)
- Panel Mount and Standard Vesa mount
- Long longevity support
- HTML 5 supported
APPLICAZIONI
- Industrial Automation
- Industrial remote controls
- Construction machinery
- Smart Retail
- Intelligent Grid
- Warehouse Systems
- Vending machines
- Robot Industries
CPU
- NXP i.MX 8M Plus Solo/ Dual/ Quad Arm®Cortex®-A53 core
- Standard or Lite CPU options
- Neural Processing Unit (NPU) option 2.3 TOP/s Neural Network performance Additional
- Cortex-M7 Core up to 800 MHz
- 4x or 2x up to 1.8 GHz 32 kB L1-I Cache/ 32 kB L1-D Cache
- TPM module
MEMORIA
- Up to 8GB LPDDR4 memory with 32-bit wide Bus
- From 8 to 256 GB eMMC Flash memory
DISPLAY E TOUCH
- Size available 7”- 10,1”- 15,6”- 21,5” IPS up to 1920x1080
- Capacitive touch screen (all size)
- Resistive touch screen (7”- 10,1”)
SOFTWARE
- OS Linux e Yocto
- HTML5, graphic SDK, QT (under responsibility and request from customer) BSP supported
TEMPERATURA
- Commercial: From 0°C to 60°C
- Industrial: From -20°C to 70°C
SPECIFICHE MECCANICHE
- 7”: slim version mount wall
- 10,1”: slim version mount wall
- 15,6”: slim version mount wall, rugged version mount/vesa mount
- 21,5”: slim version mount wall, rugged version mount/ vesa mount
I/O
- Up to 2x USB 2.0 or 3.1 Host
- Up to 2x Gigabit Lan
- Up to 4x RS232 UART
- Up to 2x CAN FD
- BLE 5.x and Wifi dual band 2.4/5.0 GHz IEEE 802.11a/b/g/n
- Audio Output
- 1x MIPI camera connector
- Temperature sensor
- RTC
Caratteristiche
- Scalable architectures with NXP i.MX8M PLUS
- Available with different display 7”, 10.1”, 15.6”, 21.5” with CTP
- NPU for AI applications available
- Security subsystem with cryptographic accelerators
- Customizable Panel PC
- Fanless system
- Boxed (CPT) and open frame version (RTP)
- Panel Mount and Standard Vesa mount
- Long longevity support
- HTML 5 supported
APPLICAZIONI
- Industrial Automation
- Industrial remote controls
- Construction machinery
- Smart Retail
- Intelligent Grid
- Warehouse Systems
- Vending machines
- Robot Industries
Specifiche
CPU
- NXP i.MX 8M Plus Solo/ Dual/ Quad Arm®Cortex®-A53 core
- Standard or Lite CPU options
- Neural Processing Unit (NPU) option 2.3 TOP/s Neural Network performance Additional
- Cortex-M7 Core up to 800 MHz
- 4x or 2x up to 1.8 GHz 32 kB L1-I Cache/ 32 kB L1-D Cache
- TPM module
MEMORIA
- Up to 8GB LPDDR4 memory with 32-bit wide Bus
- From 8 to 256 GB eMMC Flash memory
DISPLAY E TOUCH
- Size available 7”- 10,1”- 15,6”- 21,5” IPS up to 1920x1080
- Capacitive touch screen (all size)
- Resistive touch screen (7”- 10,1”)
SOFTWARE
- OS Linux e Yocto
- HTML5, graphic SDK, QT (under responsibility and request from customer) BSP supported
TEMPERATURA
- Commercial: From 0°C to 60°C
- Industrial: From -20°C to 70°C
SPECIFICHE MECCANICHE
- 7”: slim version mount wall
- 10,1”: slim version mount wall
- 15,6”: slim version mount wall, rugged version mount/vesa mount
- 21,5”: slim version mount wall, rugged version mount/ vesa mount
I/O
- Up to 2x USB 2.0 or 3.1 Host
- Up to 2x Gigabit Lan
- Up to 4x RS232 UART
- Up to 2x CAN FD
- BLE 5.x and Wifi dual band 2.4/5.0 GHz IEEE 802.11a/b/g/n
- Audio Output
- 1x MIPI camera connector
- Temperature sensor
- RTC
